Juniper
a 16' front entry travel trailer
Juniper Plans & Patterns package: $54.00
|

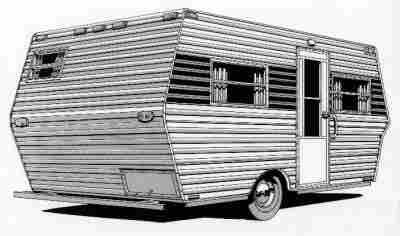

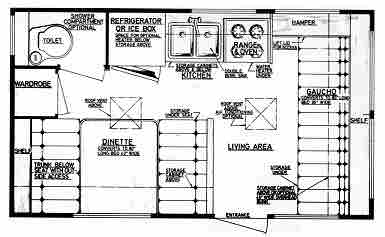

The 16' Juniper model features a front entrance and forward living area. The gaucho converts to a bed and is flanked with a commodious hamper for blanket storage. The convertible dinette is along one side while the complete kitchen is just across the aisle. The Juniper features a full height hanging wardrobe plus a large toilet room, which can be equipped with a shower, and holding tank for total self-containment. With two roof vents and seven large windows, plenty of through ventilation and light is assured. |
| Trailer Specifications: | |
|---|---|
| Trailer length overall | 16' 1" |
| Trailer width overall | 7' 10" |
| Interior length overall | 13' 7" |
| Interior width overall | 7' 6" |
| Interior height (headroom) | 6' 5" |
| Dry weight (estimated) | 2500 lbs. |
| Tongue weight (estimated) | 270 lbs. |
| Ground to roof height | 8' 2" |
| Fresh water capacity | 30 gal. |
| Holding tank capacity | 30 gal. |
| LPG capacity | 10 gal. |
| Sleeping capacity | 4-6 adults |
| Ground to frame clearance | 13" |
