Malibu
a 20' front entry/front dinette travel trailer
Malibu Plans & Patterns package: $60.00
|

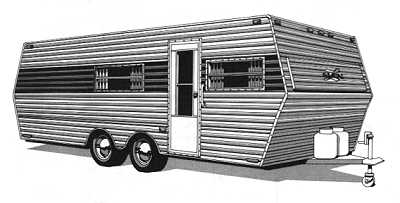

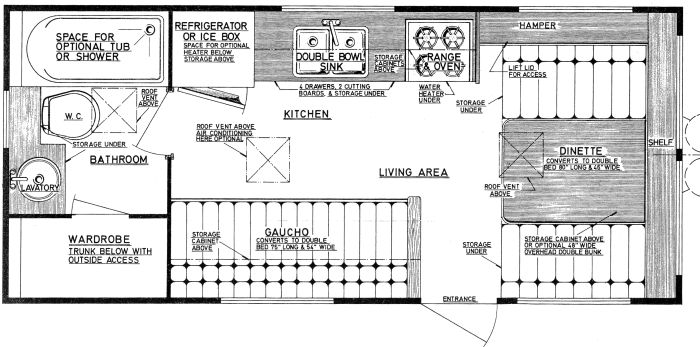

The 20' Malibu model features the same exterior appearance of the Laguna model, but the plan utilizes the traditional front dinette arrangement with side gaucho. This allows a broad expanse of uninterrupted floor area, still permits a huge private bathroom and wardrobe. It would be possible to "curtain off" the forward dinette area from the living area for two room privacy, if desired. As with all our 20' models, you get a roomy side hamper for bedding storage plus three roof vents and seven large windows for superior light and ventilation. |
| Trailer Specifications: | |
|---|---|
| Trailer length overall | 20' 1" |
| Trailer width overall | 7' 10" |
| Interior length overall | 17' 7" |
| Interior width overall | 7' 6" |
| Interior height (headroom) | 6' 5" |
| Dry weight (estimated) | 3500 lbs. |
| Tongue weight (estimated) | 370 lbs. |
| Ground to roof height | 8' 3" |
| Fresh water capacity | 30 gal. |
| Holding tank capacity | 30 gal. |
| LPG capacity | 10 gal. |
| Sleeping capacity | 4-6 adults |
| Ground to frame clearance | 13" |
