Delta Q

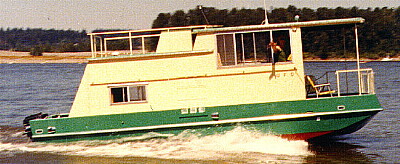

#954 a 25' trailerable houseboat with fold up side decks Build in PLYWOOD




Characteristics
Length overall 24'-11"
Length waterline 22'-8"
Beam 8'-0"
Hull draft (with skeg) 13"
Hull weight 1350 lbs.
Displacement 5860 lbs.
Height overall 8'-9"
Headroom 6'-1" to 6'-5"
Freeboard 2'-2"
Fuel capacity 90 gals.
Fresh water capacity 85 gals.
Sleeping accommodations 4
  • Hull type: Garvey hull with vee section forward, developed for sheet plywood planking.
  • Power: Single or twin long shaft outboard motors, or stern mounted inboard outdrive units. Total engine weight not to exceed 800 lbs.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
  • Trailer: Designed for use with Glen-L Series 5000 boat trailer plans.
