Bandido

#872
#873

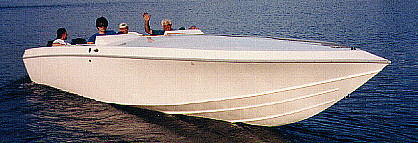

a 30' inboard deep vee runabout Build
STRIP PLANKED,
COLD-MOLDED,
or in FIBERGLASS




Characteristics
Length overall 30'-2"
Length waterline 24'-8"
Beam 8'-0"
Hull draft 15 1/2"
Displacement @ DWL 5350 lbs.
Hull weight (approx.) fiberglass versions 1900-3200 lbs.
Hull weight (approx.) wood versions 2700 lbs.
Hull depth 5'-0"
Freeboard forward 3'-3"
Freeboard aft 2'-10"
Height overall (to top of windshield) 6'-5"
Cabin headroom 4'-4"
Cockpit size 8'-0" x 6'-6"
Sun deck size 6'-0" x 6'-6"
Fuel capacity (varies with power system) Fiberglass versions: 155 to 220 gals.
Wood version: 140 to 220
Average passengers 2-5
Sleeping accommodations 2-3
  • Hull type: Full length deep vee with 22o min. deadrise with radiused keel section and double curvature, flaring topsides.
  • Power: Single or twin inboard gasoline or diesel engines using I/O units, surface propeller drives, or v-drives. Jet drives optional but not detailed. Outboard motors optional and detailed.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
