Jimbo

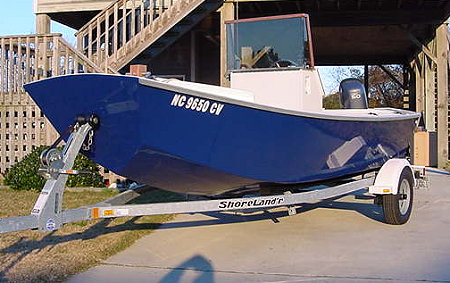

#512 a 15'-9" stitch and glue or aluminum garvey hull with center console Build in STITCH & GLUE PLYWOOD
or WELDED ALUMINUM




Characteristics Plywood Aluminum
Length overall 15'-9" 15'-9"
Beam 6'-8" 6'-9"
Draft @ 890 lbs. displacement 6" 7"
Hull depth midship 27" 27"
Average passengers 2-4 2-4
Bare hull and deck wt. (approx.) 450 lbs. 575 lbs.
Cockpit size 5' x 10' 5'-3" x 12'
  • Hull type: Garvey vee bottom developed for Stitch and glue sheet plywood or welded aluminum construction.
  • Power: Single long shaft outboard motor to 85 hp maximum; 50 hp is more than adequate for most uses. Lightweight inboard/outboard or jet optional but not detailed.
  • Can the hull be extended or shortened? Yes. Up to 10% by respacing the stations on the planking layout a proportional amount. We do not recommend increasing the beam.
  • Trailer: Designed for use with Glen-L Series 1000 boat trailer plans.

Photographs Bill of Material:
Jimbo-Plywood / Jimbo-Aluminum
