Picklefork Notes

Building the Picklefork Pictorial

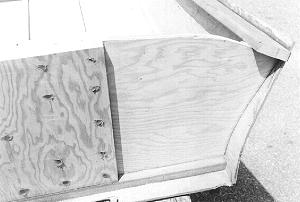

Outboard boat plans Fig. 29: The TRANSOM #38 with OUTER MOTORBOARD #30 in place. The overhang of plywood will be trimmed along the COAMING #29 and the TRANSOM #28.

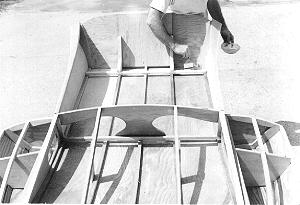

Outboard boat plans Fig. 30: The interior of the hull is coated with a preservative and then with a clear or paint finish prior to installation of decking.

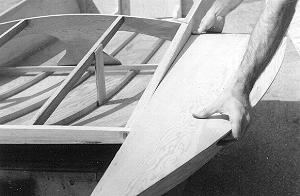

Outboard boat plans Fig. 31: The pre-fitted RUNNER DECKING #13 is fastened in place after coating the inside with paint or preservative. Overhanging extremities may be trimmed to fit after fastening in place.

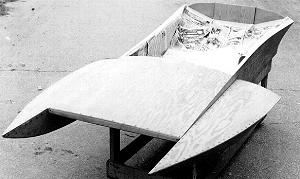

Outboard boat plans Fig. 32: The finished boat with the interior masked off in preparation for the application of the exterior finish. Fiberglass covering (not shown) is optional.
