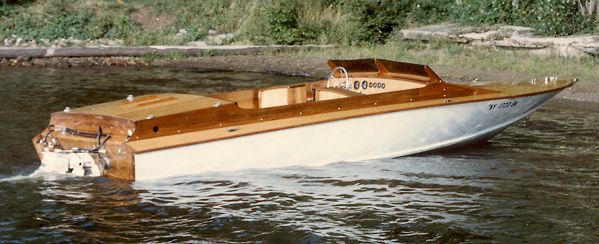

Renegade
|
| #653 |
a 21' deep vee ski
boat |
Build in PLYWOOD |
| Characteristics |
| Length overall |
20'-8" |
| Beam |
7'-11" |
| Hull depth |
31" |
| Height overall |
3'-4" |
| Average passengers |
1-4 |
| Cockpit size |
9'-4" x 6'-6" |
| Hull weight (approx.) |
1000 lbs. |
- Hull type: Full length deep vee bottom with 12o deadrise and
flaring sides. Developed for sheet plywood planking.
- Power: Outboard power: Single 20" or 25" long shaft motor to 220
hp. Twins may be used as long as the total weight does not exceed 500 lbs.
Inboard power: Single stern mounted engine driving through a vee drive, jet
pump, or outdrive, 1000 lbs. maximum combined weight.
- Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the
frames from the aft end of the stem to the transom a proportional amount. We do
not recommend increasing the beam.
- Trailer: Designed for use with Glen-L Series 2100 boat trailer plans.
|
Glen-L marine designs / www.glen-l.com / Boat
plans for the home builder
|
