Utility
#574 an 11' outboard utility boat Build in PLYWOOD

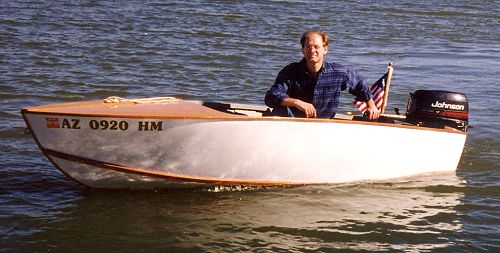

Utility built by Wayne Brandes, Flagstaff, AZ



Characteristics
Length overall 11'-0"
Beam 5'-0"
Hull depth 26"
Average passengers 1-3
Hull weight (approx.): 140 lbs.
  • Hull type: Vee bottom hard chine hull developed for sheet plywood planking.
  • Power: Short shaft outboard motor to 10 hp. Long shaft motor can be used if transom modified.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
  • Trailer: Designed for use with Glen-L Series 650 boat trailer plans.
