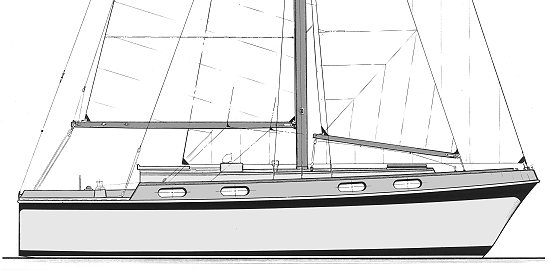

Glen-L 30-PW
|
||
|---|---|---|
| #202 #203 |
30' cruising auxiliaries | Build in PLYWOOD or FIBERGLASS |
| Characteristics | ||
|---|---|---|
| Length overall | 30'-0" | |
| Length waterline | 26'-0" | |
| Beam | 10'-4" | |
| Draft | 4'-6" | |
| Freeboard forward | 5'-2" | |
| Freeboard aft | 3'-4" | |
| Displacement (at D.W.L.) | 11,300 lbs. | |
| Ballast weight | PW: 4,000 lbs./FG: 4,100 lbs. | |
| Height (to cabin top) | 9'-10" | |
| Cabin headroom | 6'-0"+ | |
| Fuel capacity | PW: 56 gals./FG: 50 gals. | |
| Water capacity | PW: 54 gals./FG: 50 gals. | |
| Cockpit size | 6'-10" x 6'+ | |
| Sleeping accommodations | 6 | |
| Sail area | Main - 232.5 sq. ft. Foretriangle - 266.5 sq. ft. Total - 499 sq. ft. |
|
| Hull type: GLEN-L 30 has a soft-chine (semi-round) form
designed for double diagonal plywood (cold-molded) planking. GLEN-L 30FG has a
round bilge hull form for "one-off" fiberglass using either PVC foam
sandwich core or fiberglass planking with fiberglass laminates. Both versions
feature fixed ballast keels. Ballast: Lead Sail type: Masthead double head rigged sloop. Power: Single inboard diesel or gasoline engine of 10 to 20 shp. GLEN-L 30 uses an engine with v-drive, not to exceed 500 lbs. total. |
||
| Photographs | Bill of Materials: Glen-L 30-FG / Glen-L 30-PW |
