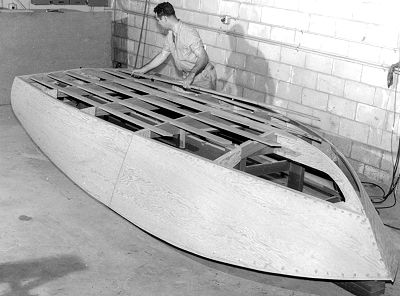

In designs that have frames notched for the battens, it is easiest to wait until after the application of the side planking before installing the battens. These members are notched into the frames the thickness of the lumber being used. After installing, check that the bottom lines are true. It may be necessary to fair or kerf the forward ends of the battens to conform to the shape of the bottom planking.

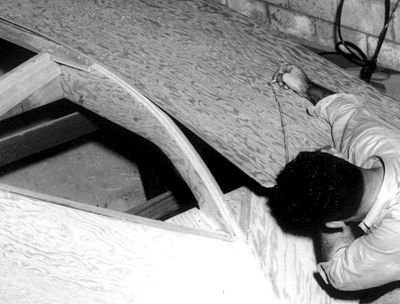

The bottom planking is clamped or located with several screws along the centerline of the keel. The forward end of the planking is roughly marked to shape and a line scribed along the chine. As much excess material as possible is cut away in the forward section to make it easier to force the planking into position. NEXT
