Rebel
Construction Pictorial 1
History
Photographs by Glen
Witt.
Builder: Don Ruffa (shop foreman).
Tools: We get a lot of questions regarding what tools are required to build a boat. You can tell by looking at these photos that although hand power tools may be convenient, they are not required.

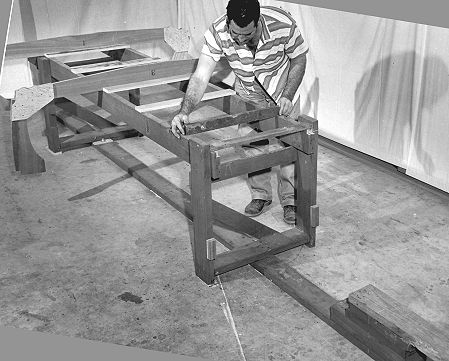

Fig 1: The building form is leveled both lengthwise and
athwartship.

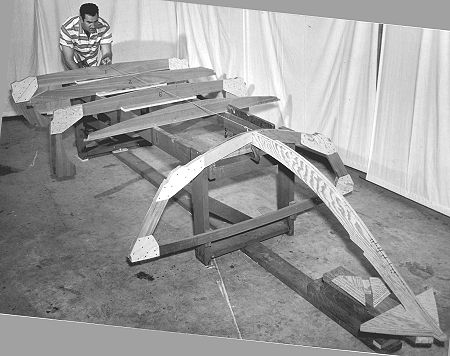

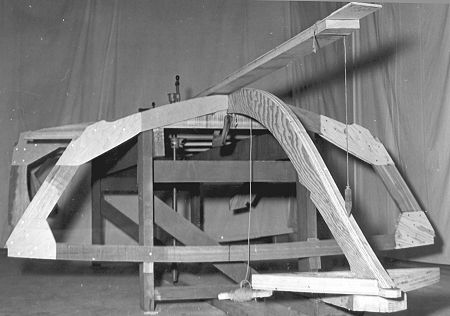

Fig 2: A straight-edge is aligned over the centerline, in this
case the keel, with a plumb-bob dropped to accurately center the
stem-breasthook assembly.

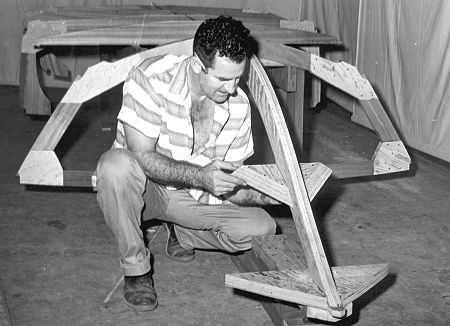

Fig 3: Frames are aligned with a chalk-line.

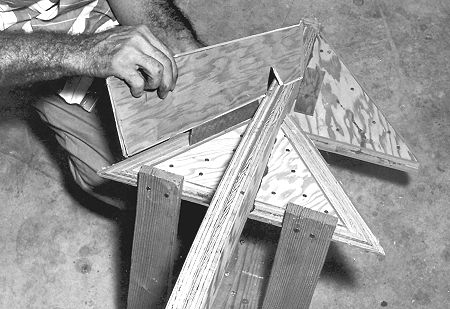

Fig 4: The chine blocking is mounted to the stem. Check Fig. 5 for
the method of determining proper alignment.
Fig 5: The fore and aft location of the chine may need to
be varied, depending on the thickness of the chine material used. Here
the builder is using a fixture with a short piece of chine material to be
sure that a continuation of the line will end on the centerline of the
stem.
|
