Rebel
Construction Pictorial 9

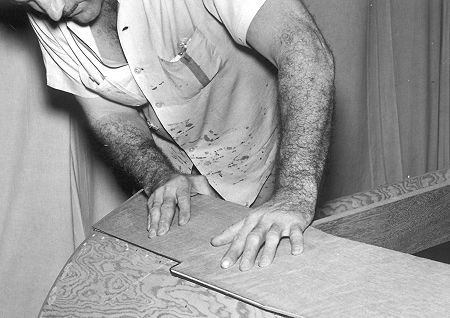

Fig 46: The decking is applied so that the transition joint comes at approximately Frame 1. Observe that the aft portion is butt-joining the side planking, while the forwrd portion forms a lap-joint that is overhanging for later trimming.

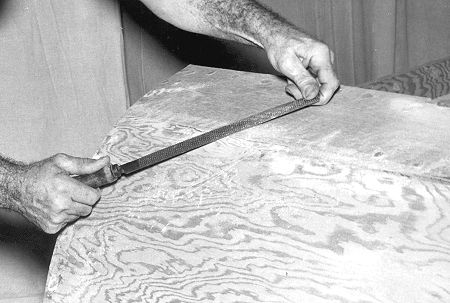

Fig 47: The junction of the decking and side planking is radiused at the transom.

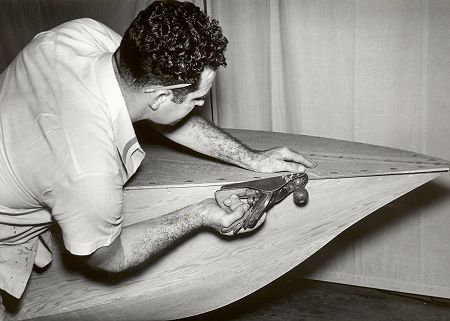

Fig 48: Trimming the decking overhand is done with a plane. Sheer trim options are shown in the plans.
Fig 49: The coaming is fitted to the lower edge of the carling, glued and fastened in place. This decorative cover piece extends from the athwartship motorwell beam to Frame 5 deck beam.

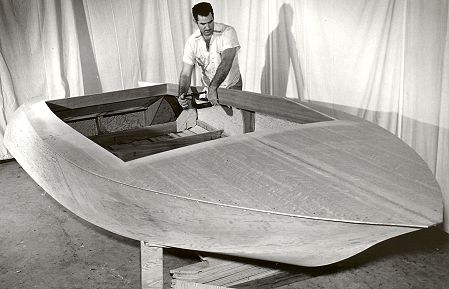

Fig 50: The beam for the cowl is cut to the same crown as the Frame 5 deck beam and fastened in position.
|
