Rebel
Construction Pictorial 6

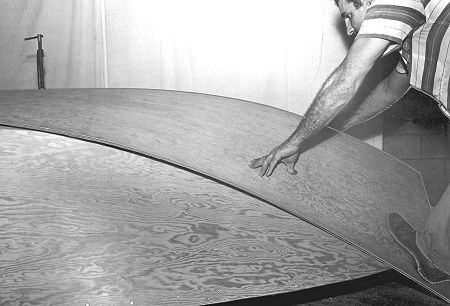

Fig 26: The bottom panel is clamped along the centerline and
roughly marked to shape.

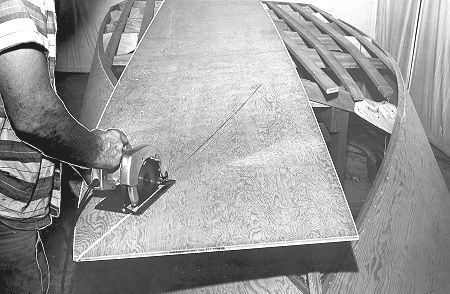

Fig 27: The panel, after being roughly scribed, is cut to shape
with a fine-tooth hand or power saw.

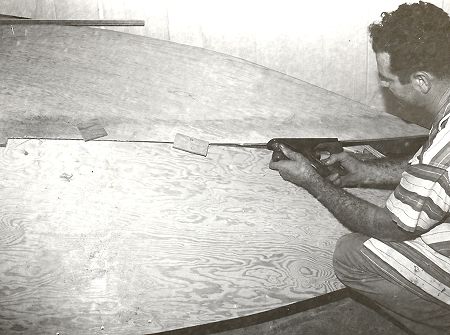

Fig 28: Fitting the forward edge that will butt to the side panel
is the only area that must be done carefully. The builder is using
washer-blocks under the heads of the screws to distribute the stress
while progressively fitting the panel.

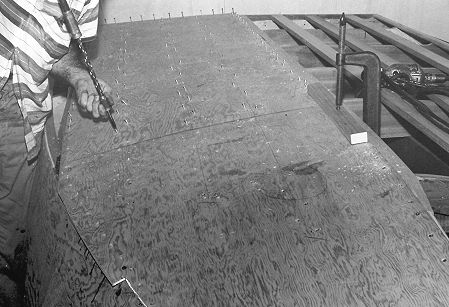

Fig 29: The bottom is glued and fastened into position. Note that
the screws along the battens are well staggered.

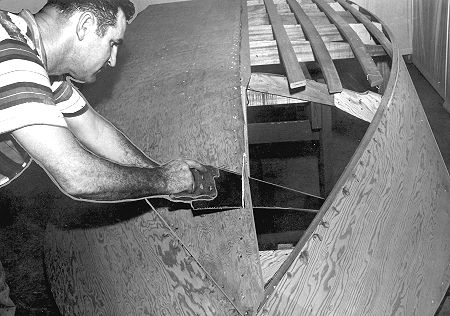

Fig 30: The overhang along the stem is sawn off prior to
installing the second side panel.
|
