Designer's Notebook: Skeg/Fin

Continued...


Either a skeg of fin can be used on the Squirt. On a small boat such as the Squirt, the skeg should end approx 18" forward of the transom to prevent cavitation.
The skeg is cut from 3/4" thick material, tapers from approx 1/2" at the forward end to 1 1/2" aft. Give the trailing edge an airfoil shape. See drawings below from other sets of plans.

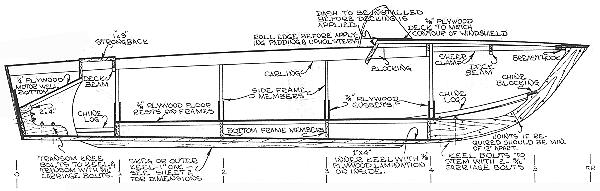

Ski Tow

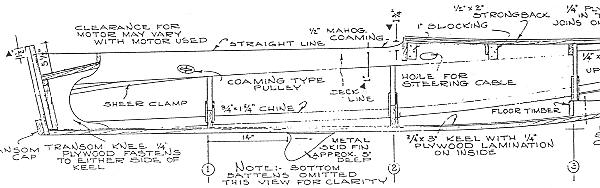

TNT

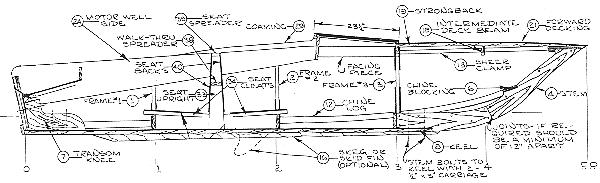

Tuffy
