Glen-L 13
      Construction Pictorial

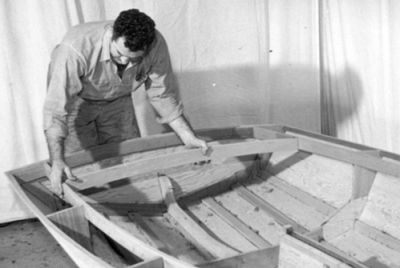

Fig 38: The aft deck beam is blocked between the carlings and fitted into position. If the boat is to be used with an outboard motor, this beam and aft deck can be eliminated.

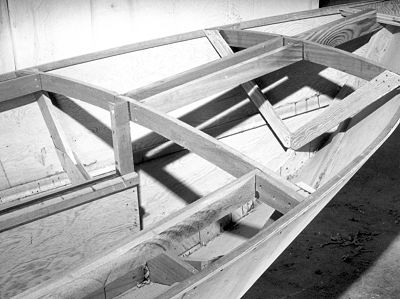

Fig 39: The completed forward deck framing is shown in this photograph. Notice the angular braces to the stem area. This varies slightly from the drawing, which was modified to a better configuration.

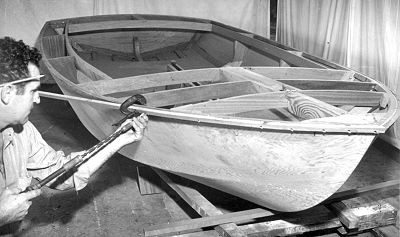

Fig 40: The outer sheer is beveled per the details in the instructions and glued and fastened in place. This member is difficult to spring in place, so clear lumber should be selected. To simplify the bending, soaking the member with hot water is advised.
