Glen-L 13
      Construction Pictorial

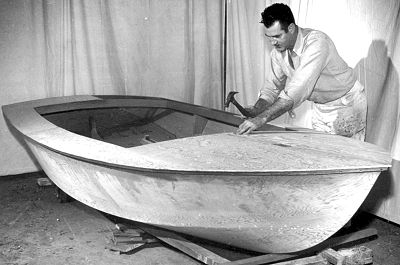

Fig 41: The decking is coated liberally with glue and nailed in position per the fastening schedule. The decking area may be left oversize both in the cockpit area and along the sheer, to be trimmed after decking is installed.

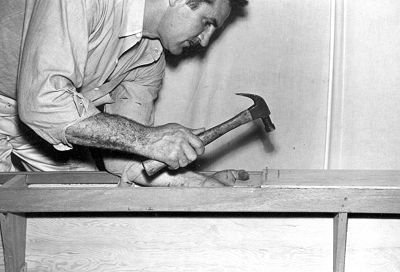

Fig 42: Forward decking is joined to the aft side decking between the carling and sheer by a butt block liberally coated with glue.

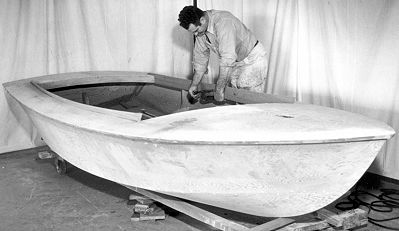

Fig 43: The coaming dimensions are indicated on sheet #2 of the plans. This 1/2" mahogany member is optional.
