Glen-L 13
      Construction Pictorial

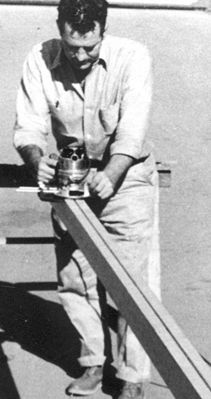

Fig 44: Several types of masts are detailed in the drawings. Here the builder is making the solid-type mast. A groove has been cut in the center of one side of the mast with a circular saw, and a router to cut the sail track groove.

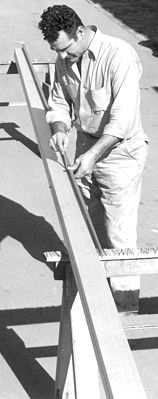

Fig 45: The contour of the mast is scribed on the leading edge of both sides of the spar. The excess is removed with a bandsaw.

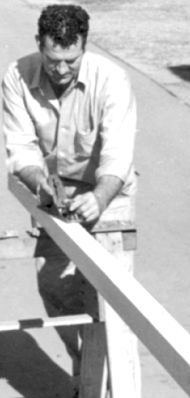

Fig 46: This area is then faired to a smooth uniform curve with a hand plane.
