Fancy Free
      Construction Pictorial

Construction photos of the Fancy Free. Most of the photos are of Ed King's Fancy Free unless noted otherwise. Other photos are from John Caras and Jerry Manley. Ed Kings boat did not include a motorwell. Photos of John Caras', Thomas Perry's and Jerry Manley's boats show details of the motorwell.

Fancy Free frames

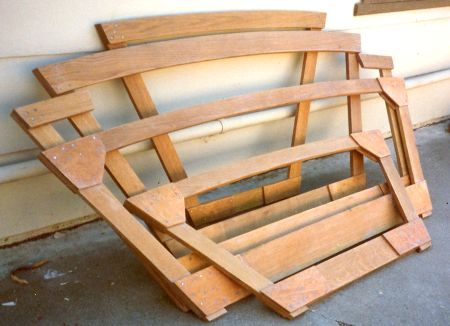

Fig 1: The frames ready for mounting on the building form. (Caras).

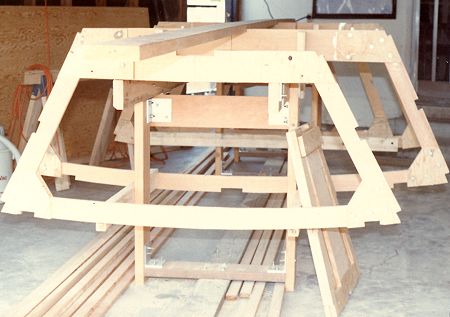

Fig 2: The frames are being set up on the building form.

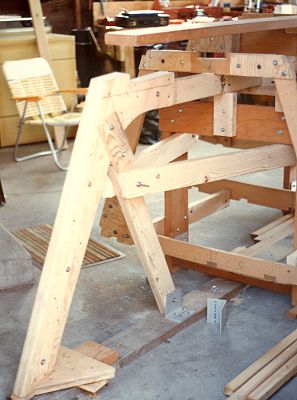

Fig 3: The stem is mounted and braced to prevent movement.

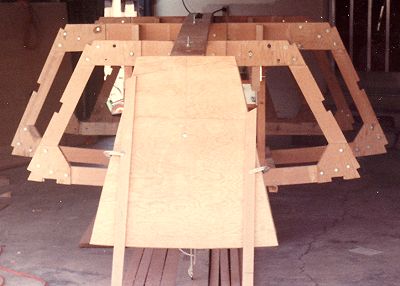

Fig 4: Transom - Temporary "legs" are clamped on to hold transom in position.
